BROWNELLS BINO Gen. 2+ DEP XR 5






Preis anrufen
Hersteller:BROWNELLS
Obrázok
Obrázok zväčšíte kliknutím naň
Extra Bildern:
ObrázokObrázokObrázokObrázok
ObrázokObrázokObrázokObrázok
ObrázokObrázokObrázokObrázok

Nachtsichtgerät Photonis DEP

Dieser Nachsichtgerät ist mit  Bildverstärker Gen. 2+ DEP XR 5 ausgestattet. Gen. 2+ DEP XR 5 von Photonis hat Auflösung min. 64 lp/mm, S/N ratio min. 23/25, Fotokatodesensitivität ist min. 700 µA/lum und Restlichtverstärkung ist zwischen min. 40 000x und max. 70 000x. Lebensdauer sind minimal  15 000+ Arbeitstunden ohne Bildveränderung. Rohre ist nicht Autogated.

• Multifunctional: Hand-held, head-mounted or helmet-mounted

• Uses one CR123 batery

• Automatic high-light cutoff

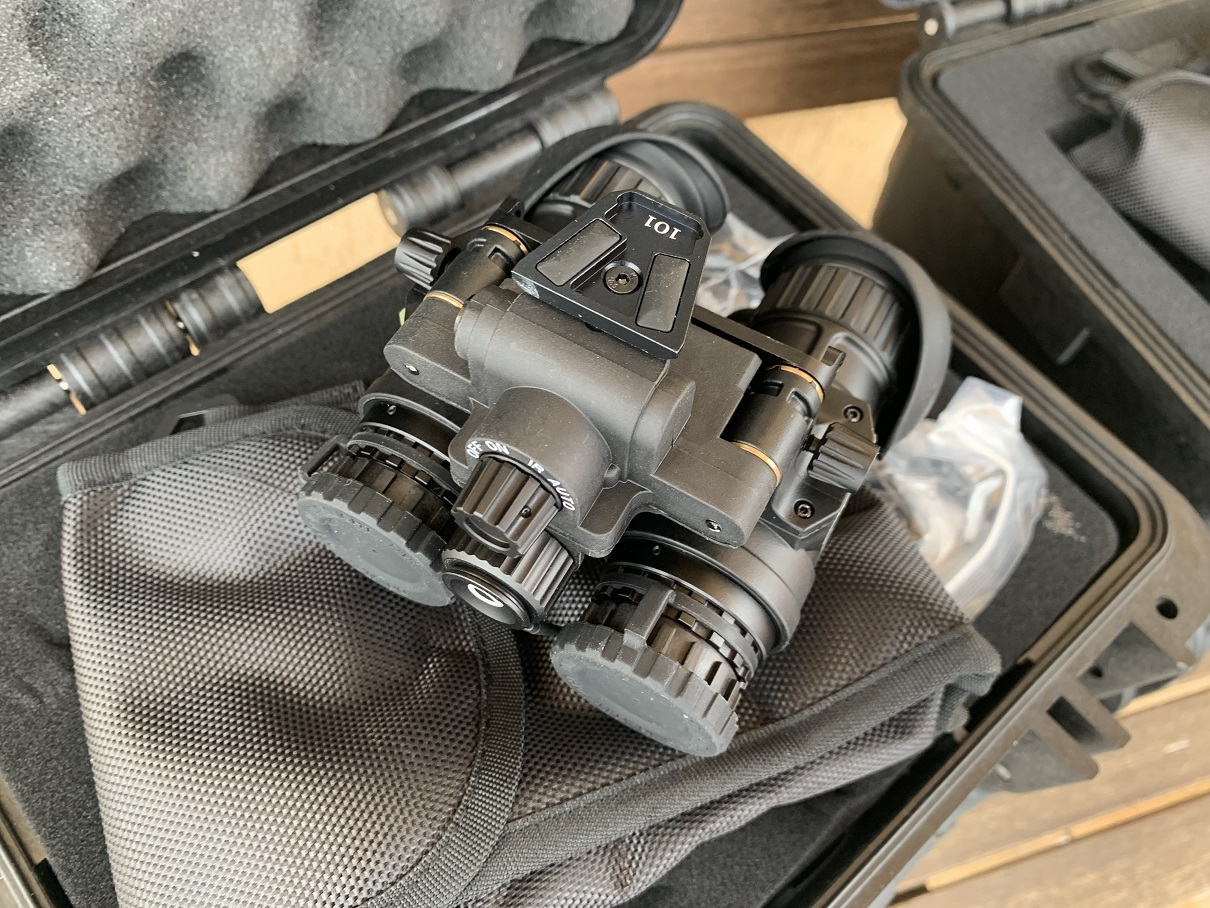

BROWNELLS BINO is the latest, lightest, and the most versatile night vision system on the market. IIT is available with features Automatic Brightness Control and Bright Light Protection.

Image gain adjustment:Automatic adjustment according to the environment Turn up automatic shutdown function: the product can automatically set the low power consumption according to

the environment. When turning up to the helmet, the product will turn off automatically. When turning down the helmet, the product will turn on automatically. This function can be turned off when used by hand.


• Hand held binocular

• Hands free goggle (with the included headgear or optional helmet mount)

• Surveillance and night-time photography (with the use of the optional universal adapter)


FEATURES:

• Advanced Gen. 2+, 3 or Gen. 4 image intensifier tubes

• Structural mode - Arbitrary turn it over

• Rollover detection - Automatically detect and power off

when turning up

• Battery type - Lithium battery (cr123x1) / cr23x4

external battery box

• Power supply 2.6-4.2V

• Installation Head mounted (standard US helmet

interface)

• Control mode ON/IR/AUTO

• Over power consumption <0.1W

• Battery capacity 800-3200maH

• Battery life 40-100H

• Magnification 1X

• FOV( °) 48° Parallelism of optical axis <0.1 °

• Lens system F1.18 , 22.5mm

• MTF 120LP/mm

• Optical distortion 3% Max

• Relative Illumination >75%

• coating Multilayer broadband coating

• Range of focus 250mm-?

• Eye relief 30 mm

• Exit pupil 8mm

• Dioptre adjustment 0 (+ / - 5 optional)

• Eye spacing adjustment - Arbitrary continuous

adjustable

• Eye distance adjustment range 50-80mm

• Eye distance locking method Manual locking

• Weight 495g (without battery); 520g ( with AA battery


MODEL BROWNELLS BINO

Structural mode Arbitrary turn it over

rollover detection Automatically detect and power off when turning up

Battery type Lithium battery (cr123x1) / cr23x4 external battery box

Power supply 2.6-4.2V

Installation Head mounted(standard American helmet interface)

control mode ON/IR/AUTO

Over power consumption <0.1W

Battery capacity 800-3200maH

Battery life 40-100H

magnification 1X

FOV( °) 48°

Parallelism of optical axis <0.1 °

Lens system F1.18 , 22.5mm

MTF 120LP/mm

Optical distortion 3% Max

Relative Illumination >75%

coating Multilayer broadband coating

Range of focus 250mm-infinity

Eye relief 30 mm

Exit pupil 8mm

Dioptre adjustment 0 (+ / - 5 optional)

Eye spacing adjustment Arbitrary continuous adjustable

Eye distance adjustment range 50-80mm

Eye distance locking method Manual locking
