G-14 Gen. 2+ DEP DST ONYX





3 620.00 EUR with VAT
( 109 056.12 Sk)
Manufacturer:LVL
Obrázok
Click for larger picture
Extra pictures:
ObrázokObrázokObrázokObrázok
ObrázokObrázokObrázokObrázok
ObrázokObrázokObrázok

Nightvision Photonis DEP

ONYX version is equipped with white phosphor P45 and the result is black&white image. This device with image intesifier tube Gen.2+ DEP - Photonis in version DST ONYX has resolution 65-73 lp/mm (typical ), S/N Ratio 21-23,4, photocathode sensitivity 568-726 µA/lum and gain 4 621x - 6 000x. Lifetime is minimal 4000-6000+ hours. This is definitely not DEP 0 version. Real parameters DEP DST ONYX are in general much higher against minimal guaranteed parameters and parameters DEP 0 ONYX too.

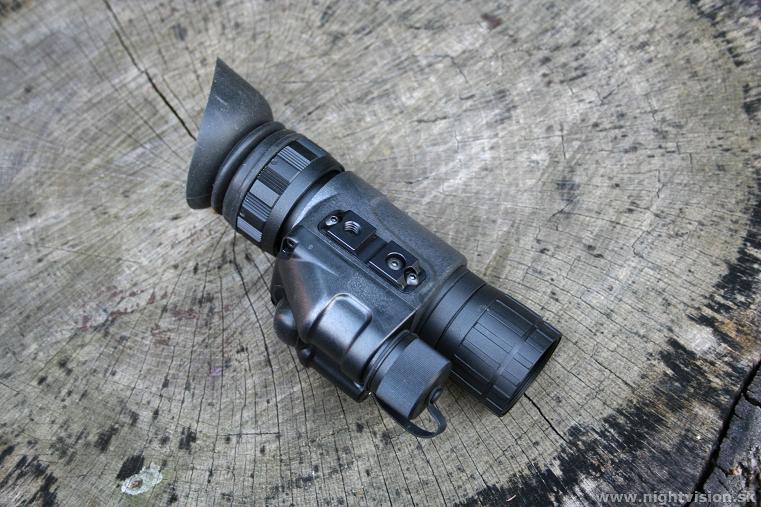

Uncompromising performance of the Select Alpha image intensifiers for Generation 2 price. Derived from the highly successful LVLMi-14, G-14 offers high quality, outstanding reliability, and unbeatable value for the most discerning professionals. G -14 features a unique ergonomic design that allows very comfortable single-handed operation and dramatically minimizes the probability of user errors in extreme conditions. The unit operates on one CR-123 battery to keep the weight to a minimum and guarantees reliable service at a wide range of temperatures. The monocular is equipped with an invisible to the human eye short range infrared illuminator to assist with tasks that have to be performed in complete darkness, such as map reading, equipment repairs, etc. G-14 comes standard with Mil Spec headgear, weapon mount, Camera/Video adapter, sacrificial window, and soft carrying case making in it one of the most versatile “out-of-the box” systems on the market. With the use of standard and optional accessories, G-14 can be configured for a multitude of mission requirements:

Hand held spotting scope (can be used alone, with optional magnification lenses, or attached to a daytime spotting scope with the optional universal adapter)

Hands free mono-goggle (with the included headgear or optional helmet mount)

Day/Night weapon sight (with the use of the included weapon mount and optional EoTech/Aimpoint, or attached to an existing rifle scope with the optional universal adapter

Hand held binocular (with the use of an optional Bridge Assembly and optional magnification lenses)

Surveillance and night-time photography (with the use of the included camera adapter)

Specifications:

Image Intensifier Generation 2+
Magnification 1x (3x optional)
Lens System 23 mm f1.2
FOV: 40°
@1000 yards 2099’ / @1000 meters 640 meters
Range of Focus 10’’ to infinity / 25 cm to infinity
Detection Range 984’ / 300 meters
Recognition Range 820’ / 250 meters
Diopter Adjustment: +5 to -4
Weather Resistant Water Proof 6’ (1,8m) for 120 min
Camera/Camcorder Adaptable: Yes
IR Illuminator Yes
Battery Type/Life: CR123 (1x) /40 hours
Dimensions 4.5" x 2.6" x 1.9" / 115mm x 66mm x 49mm
Weight 11 oz / 312 grams
Operating Temperature -22° F to 125° F / -30°C to +52°C
