Nachtsichtgerät 3. Generation

Dieses Nachsichtgerät ist mit  Bildverstärker Gen. 3 Super ausgestattet. Gen. 3 Super Rohre hat Auflösung min. 64 lp/mm, S/N ratio min. 25, Fotokatodesensitivität ist min. 1800 µA/lum und Restlichtverstärkung ist zwischen min. 40 000x und max. 70 000x. Lebensdauer sind minimal  10 000+ Arbeitstunden. Rohre ist widerstandsfähig gegen Rückstosse minimal 75 g während 6 ms, aber kann mithalten bis  500 g (gesamt 1000 g) während  0,3 ms.

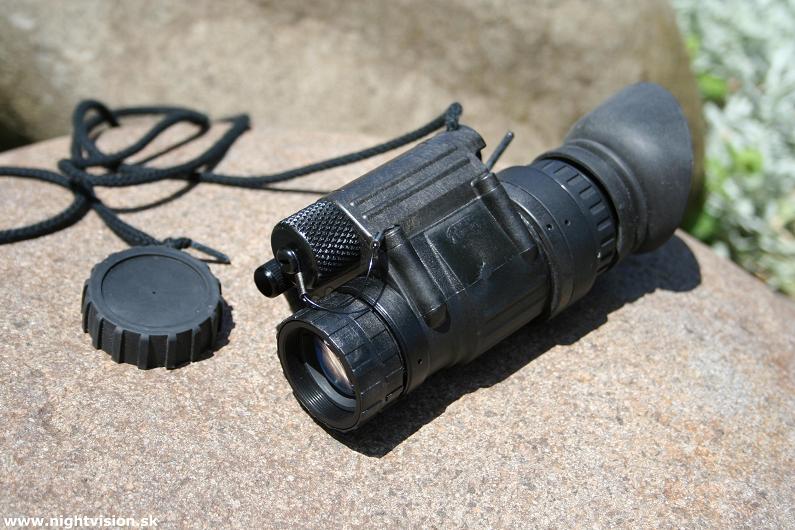

Night Vision, the world’s leading producer of Generation (Gen) 3 night vision devices, offers the LVLP - 14 Monocular Night Vision Device (MNVD). The LVLP - 14 is now a light-weight single-battery configuration. The single-batteryconfiguration delivers the same features and versatility as the earlier dual-battery LVLP - 14 in a lighter weight monocular, providing greater mobility and efficiency under demanding operational conditions. The single-battery LVLP - 14 configuration is the latest design in U.S. Military battle-proven night vision.

Derived from the US military issue, LVLP - 14 features Automatic Brightness Control and Bright Light Protection, as well as manually adjustable gain for urban environment. LVLP - 14 comes standard with Mil Spec headgear, soft carrying case and covered by 2 year ITT warranty. With the use of optional accessories, LVLP - 14 can be configured for a multitude of mission requirements:

- Hand held spotting scope (can be used alone, with optional magnification lenses, or attached to a daytime spotting scope with the optional universal adapter)
- Hands free mono-goggle (with the included headgear or optional helmet mount)
- Day/Night weapon sight (with the use of the optional weapon mount and EoTech, or attached to an existing rifle scope with the optional universal adapter)
- Surveillance and night-time photography (with the use of the optional camera adapter)

Lifetime of Image Intensifier Tube is min. 10 000+ hours.

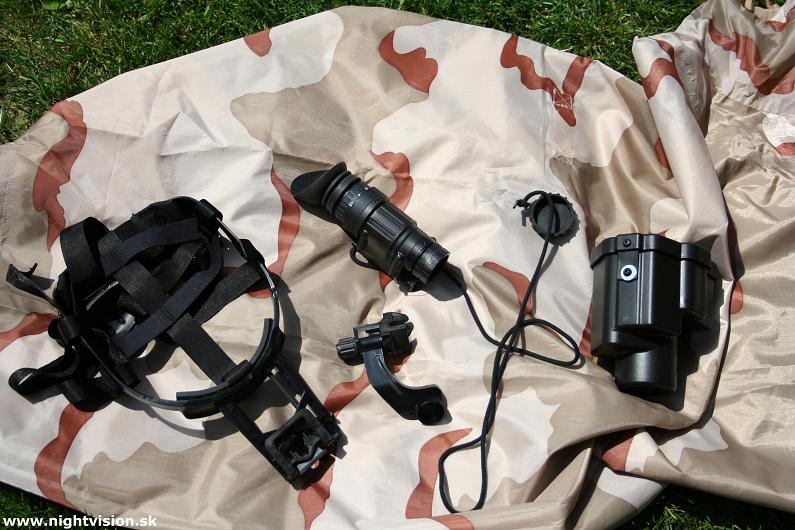

Standard Accessories Include:

Head Mount Assembly - Allows for hands-free operation. Accommodates the user’s head size and eye positioning.
Brow Pad - Changeable pad for secure head mount fit.
Helmet/Head Mount Adapter - Allows the user to position the monocular in front of either eye.
Eye Cup - Prevents the emission of stray light or facial reflections.
System Soft Carrying Case - Provides convenient storage of NQ PVS-14 and accessories.
Unit Soft Carrying Case - Provides convenient storage of NQ PVS-14.
Shoulder Strap - Attaches to the NQPVS-14 carrying case for easy portability.
Batteries - Two (2) AA. (includes one (1) spare).


LVLP - 14 Product Specifications:

Generation: 3 Gen
Resolution: 64-72 lp/mm (typ)
S / N Ratio:  22 – 27 typical
Photocathode Sensitivity: 1800+ µA/lum
Brightness Gain:  Adjustable from 25 to more than 3000 fL/fL
Magnification: 1x
Field of View: 40°
Objective Lens: f/1.2
Eyepiece Lens: EFL 26 mm
Diopter Adjustment: +4 to -6 D
Range of Focus:  25cm to infinity
Voltage Required: 2.7 – 3.0 Volts
Battery Type: One (1) AA size
Battery Life:  Approx. 50 hrs at room temp
Weight:  12.4 oz (351.53 grams)
Dimensions:  4.5” (L) x 2” (W) x 2.25” (H)
Operating Temperature: -51°C to +49 °C
Storage Temperature: -51°C to +49 °C
Detection Range  1148’ 350 meters
Recognition Range 984’ 300 meters
Weather Resistant  Water Proof 3’ for 30 min
