Night vision Clip on Sight Photonis DEP
This device with image intesifier tube Gen.2+ DEP - Photonis in version Supergen has resolution as Type 1 min. 45 lp/mm and min. 51 lp/mm as Type 2, S/N Ratio min. 18, photocathode sensitivity min. 500 µA/lum and gain min. 30 000x. Lifetime is minimal 7 500+ hours.

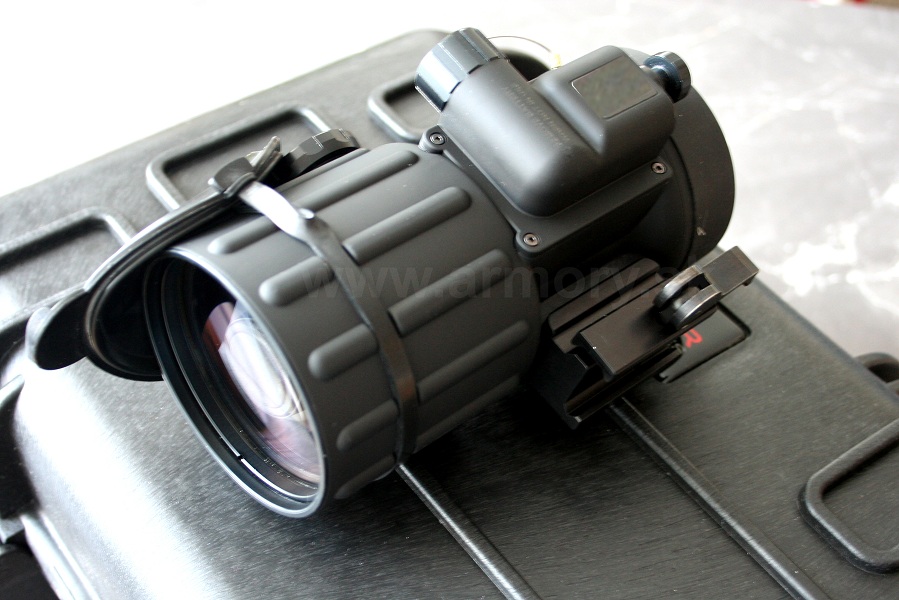

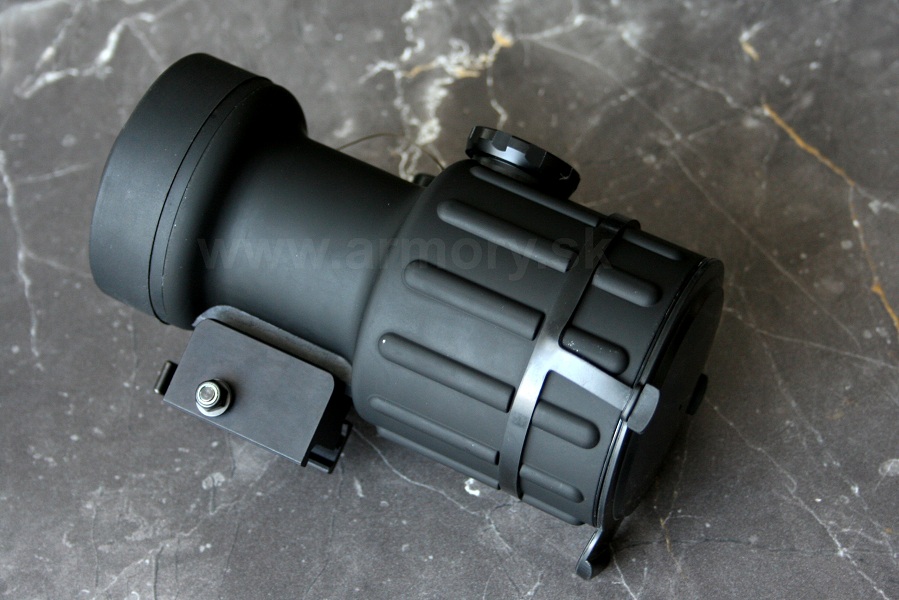

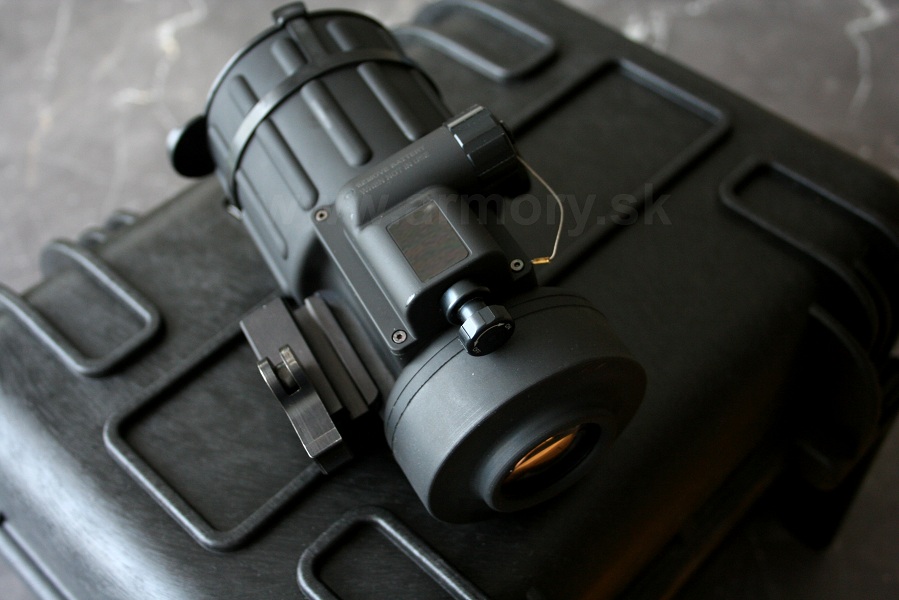

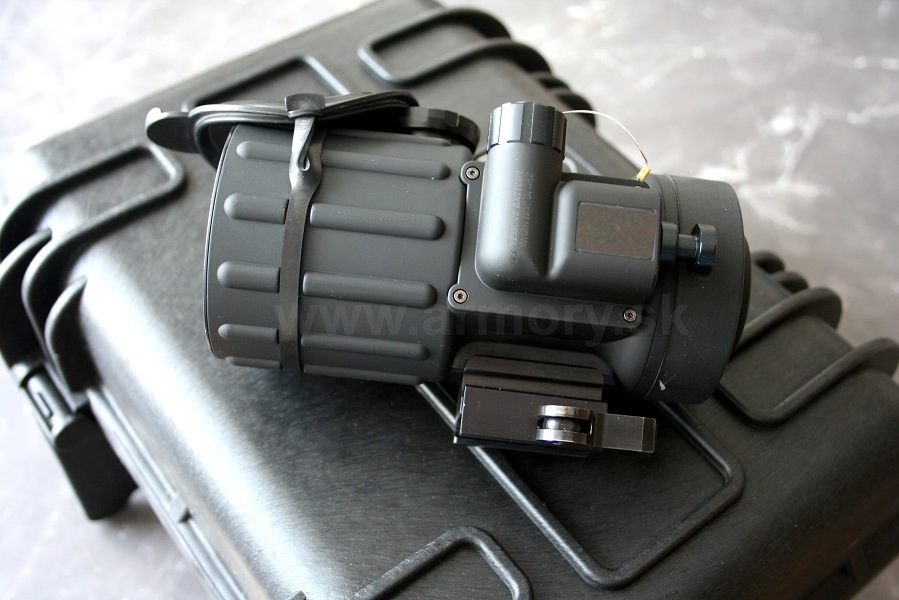

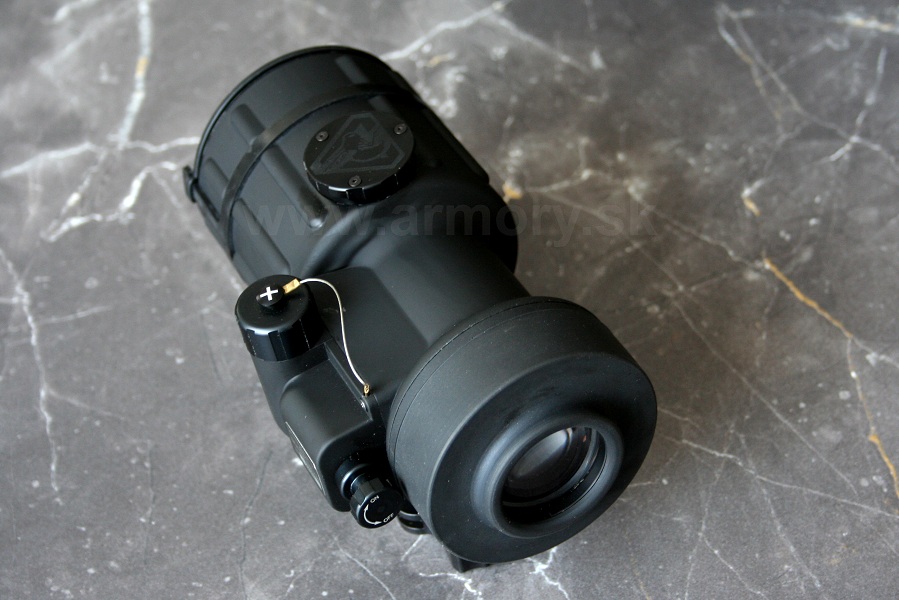

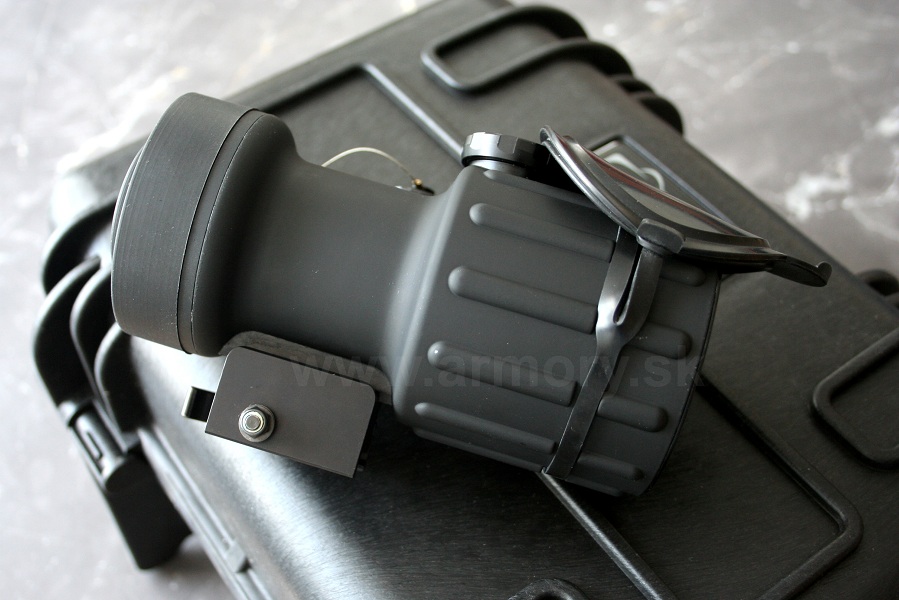

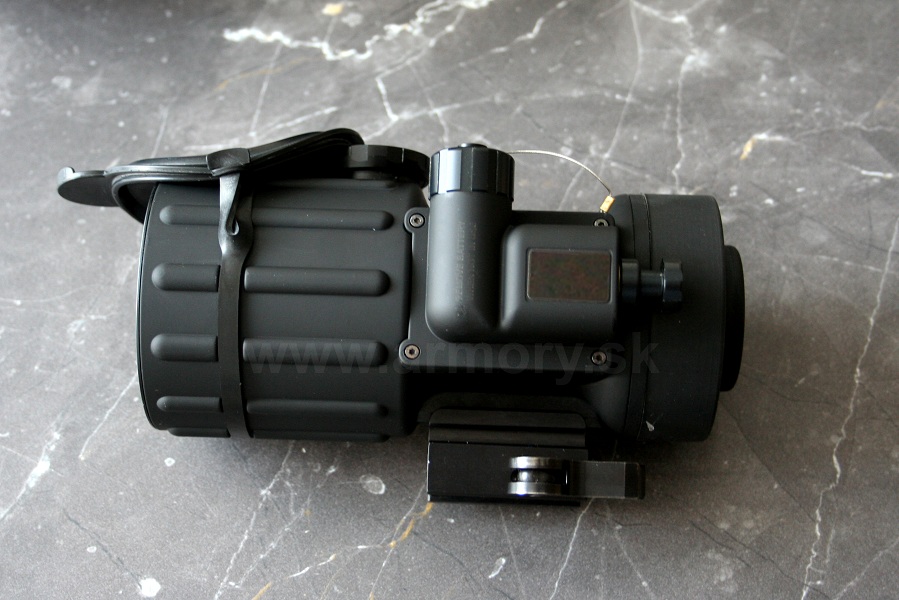

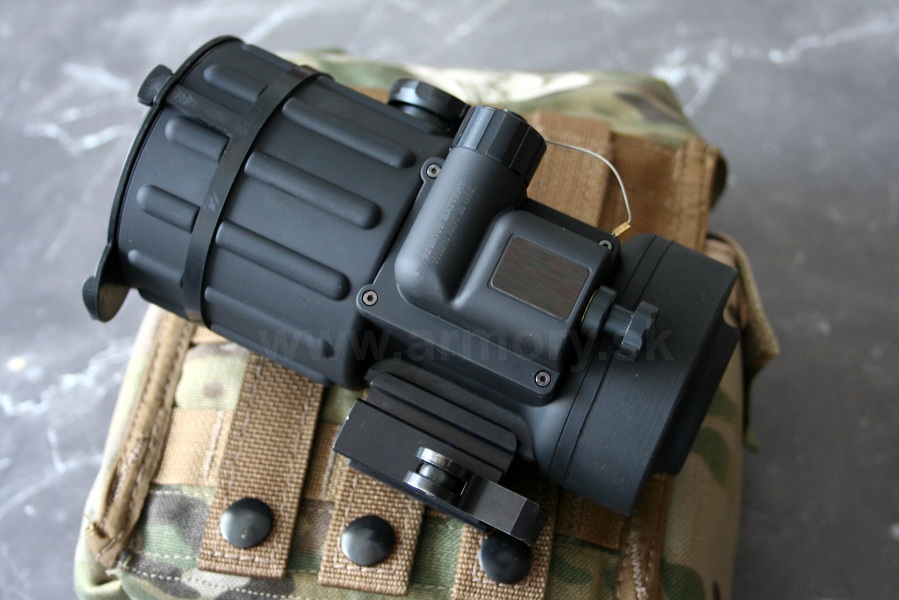

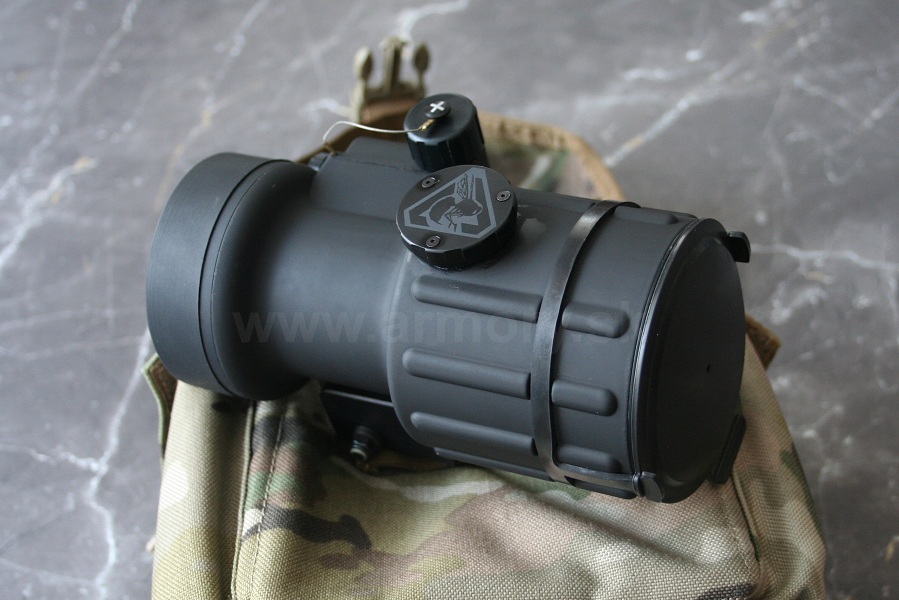

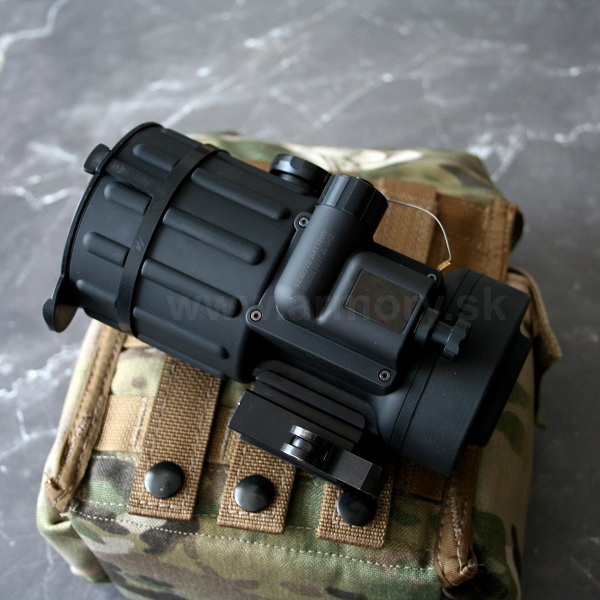

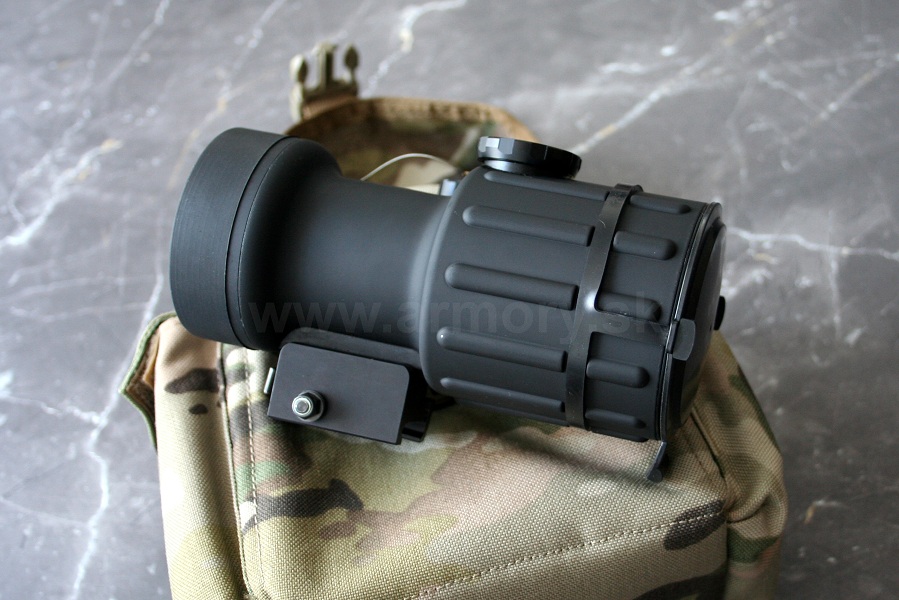

LVL/PVS-22 Clip-On Night Vision Sight
Main Features:
- Simple and quick conversion of daytime scope to Night Vision
- Mounts in front of riflescope with no re-zeroing required
- Recommended for use with day scopes of up to 3X - 12X
- Powered by a single alkaline 1.5V AA or 3V CR123A lithium battery
- Bright Light Indicator
- Automatic Brightness Control
- Quick Release Mount
- Mil Standard Compliant
Product Description:
The LVL/PVS-22 Clip-On (High Range) is a new clip-on sight and one of the most advanced Night Vision Clip-On systems for shooting at night over the middle distance, and which stands above the competition when it comes to clarity, versatility, reliability, function and value.
The LVL/PVS-22 Clip-On converts your existing day scope to night vision and provides excellent target acquisition and aiming capabilities for the demanding military, law enforcement, or security personnel. Built using the latest advancements in Night Vision technology.
The LVL/PVS-22 Clip-On eliminates the traditional requirement of removing your existing day scope from your rifle, to replace it with a dedicated night vision sight (which would also involve re-zeroing). The LVL/PVS-22 Clip-On simply mounts in front of your own standard day optical sight 3X – 12X magnification.
The LVL/PVS-22 Clip-On allows the user to maintain consistent eye relief and shooting position, and because the user views his own day scopes reticle (which he is familiar with), no re-training is required.

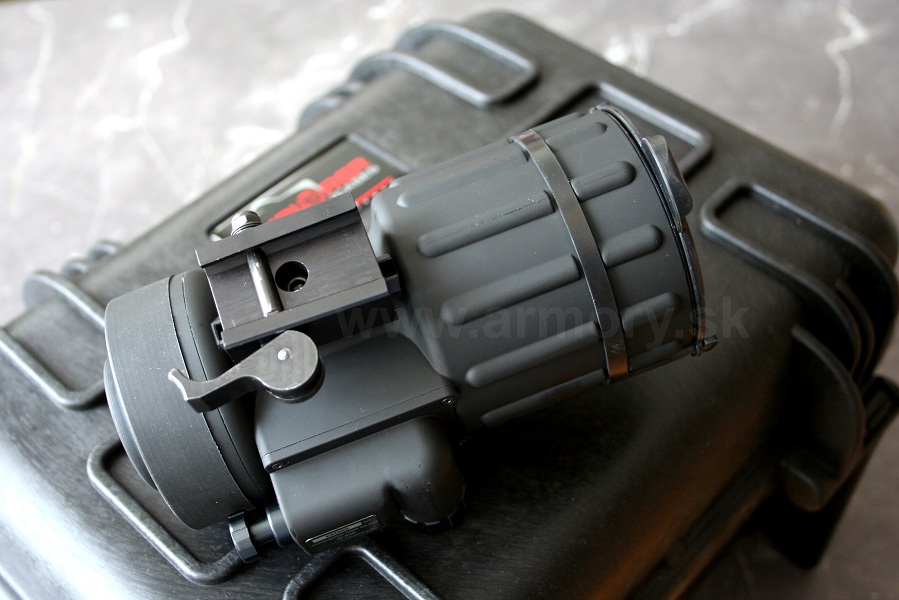

TheLVL/PVS-22 Clip-On is equipped with a locking (but quick-disconnect) mounting system which provides the user with an easy and quick way to attach/detach the NG-MR-D on a standard weaver or Picatinny rail.
LVL/PVS-22 Technical Specifications:
Generation Tube: 2+ or 3
Magnification: 1x

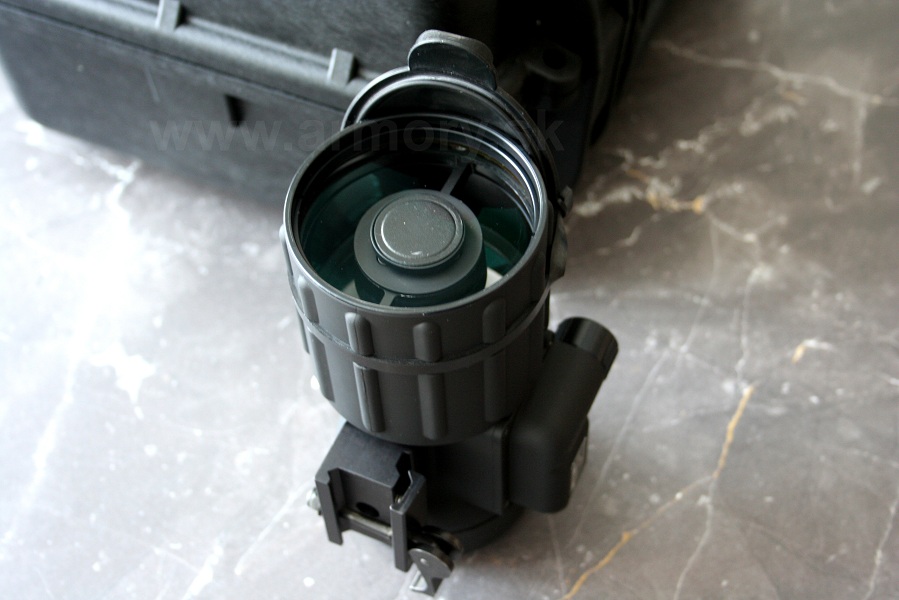

Lens system: 80mm, f/1.1
Field of view: 7°
Focus range: 10 m to infinity
Exit Pupil: 35 mm
Optimal Day Scope Magnification: 3x - 12x
Automatic Brightness Control: Yes
Low Battery Indicator: Yes
Power Supply: 1 x 3V CR123A
Battery life: 60 hours
Environmental Rating: Waterproof
MIL-STD-810: Yes
Operating temperature from -40°C to + 51°C
Dimensions (L x W x H): 162 x 95 x 86 mm
Weight (w/o weapon mount): 0.88 kg
